    Automatic Steel Slitting Machine For Metal Coil PLC Control

    Company Profile
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Products Description
    The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Product Paramenters



    Steel
    coil parameters
    Material
    HR,CRS and GI
    Tensile strength
    δb≤450Mpa,δS≤260Mpa
    Steel thickness
    0.3-3mm
    Steel width
    500-1600
    Steel coil I.D
    φ480-520 mm
    Steel coil O.D
    φ1600mm(Max)
    Steel coil weight
    15T

    Slitter parameters
    knife pivot diameter
    Ф200 mm
    Knife pivot material
    40Cr
    Blades specification
    Φ200mmXφ340mmX15mm
    Blade material
    6CrW2Si
    Slit parameter
    Max slit quantity
    5 pcs (3mm) 25 pcs(0.3mm)
    Width precision
    ≤±0.05mm/2M
    Mini slit strips width
    20mm



    Other parameters
    Power
    380V/50Hz/3Ph
    Line speed
    0-100m/min
    Capacity
    210 Kw
    Whole line Dimension
    25m(L)X8m(W)
    Operator needed
    1 mechanical engineer ,2 common workers
    Line direction
    From right to left(Face to machine)
    Machine color
    White grey
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Recommend Products
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Our Advantages
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Certifications
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control
    Automatic Steel Slitting Machine For Metal Coil PLC Control

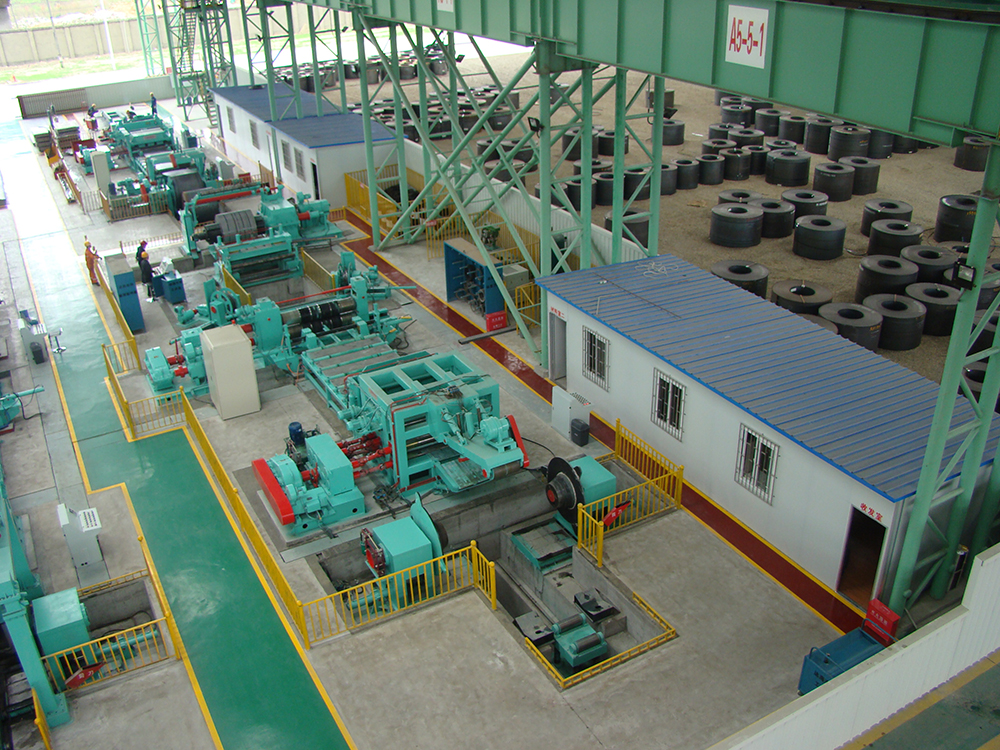

    Customer Photos
