Automatic Metal Coil Slitter Machine Line for Steel Cutting 6mm

product description

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Item	material thickness/mm	Material width	speed/mpm
1	0.2-2	400-2000	0-50-80-100-150
2	0.3-3	400-2000	0-50-80-100-120
3	0.4-4	500-2500	0-50-80-100-120
4	0.5-5	500-2500	0-50-80-100-120
5	1.0-6	500-2500	0-50-80-100
6	2.0-8	500-2500	0-30-50
7	3.0-10	800-2500	0-30-50
8	4.0-12	800-2500	0-30-50
9	8-16	800-2500	0-30-50
10	6.0-20	800-2500	0-30

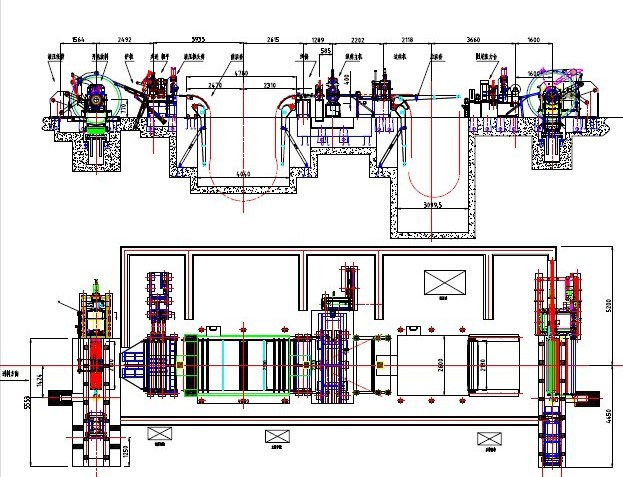

The whole lineflowchart Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car

Automatic Metal Coil Slitter Machine Line for Steel Cutting 6mm

Product Name	2--6mmx1800 Slitting Machine
Condition	new
Size	25m6m2m
Color	customized
Purpose	Slitting coils
Package	Standard packing
MQQ	1 set
Delivery	80-100 days
Shipment	Shanghai port
Payment Mode	T/T, L/C
Payment Condition	30% deposit in advance. Balance paid by TT before shipping.
Supply Capacity	3 sets per year

Basic specification of the steel coil

Material of coils	High Strength Low Alloy steel ,78ksi(G550Mpa)
coil thickness	2~6mm
coil width	500~2100mm
Inner diameter of coils	≥508mm(508, 610, 760)
Outer diameter of coils	2100mm
Max. coil weight	25000Kgs

Technical specifications of the complete slitting machine

1. Thickness of the coils: 2—6mm; 2. Width of the slitting coils:500-1800mm 3. Precision of slitting width tolerance: ±0.03mm 4. Slitting speed: 0—80m/min(adjustable) 5. Coil Inner.Diameter: 460mm-610mm-760mm 6. Coil Outer.Diameter: max 2100mm 7. Slitting motor power:132kw DC motor 8. Recoiler motor power:160kw DC motor 9. Min slitting width : ≥30mm 10. Slitting blade quantity: 22 pcs
