7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch

    Buy cheap 7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch from wholesalers

    Buy cheap 7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch from wholesalers
    • Buy cheap 7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch from wholesalers

    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch

    Ask Lasest Price
    Brand Name : HRF
    Price : $40,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch

    Company Profile
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    Product Description
    we use H -beam welding for the frame,After polishing and painted the color , the cutting blade with the rollers are use Cr12,quenched 58-62,all electrical parts use import brand ,After all processing, the machine achieves perfect construction and long life.

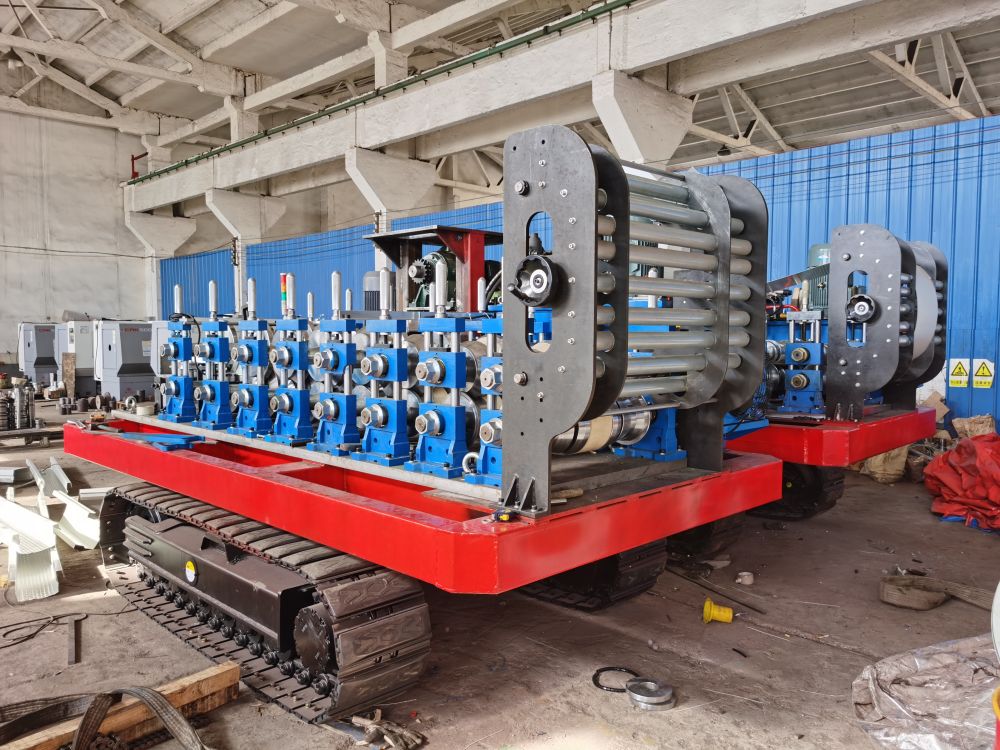

    Details Images
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch

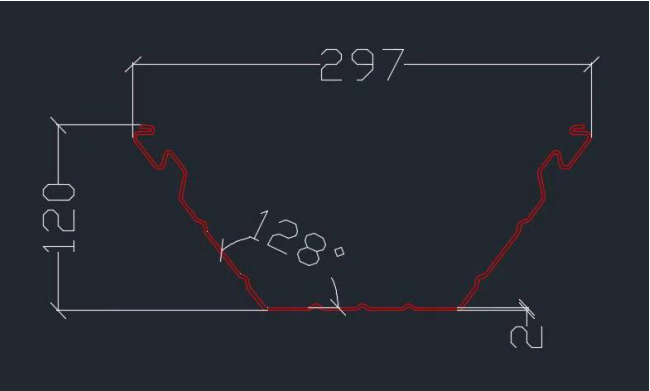

    Profile drawing
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch

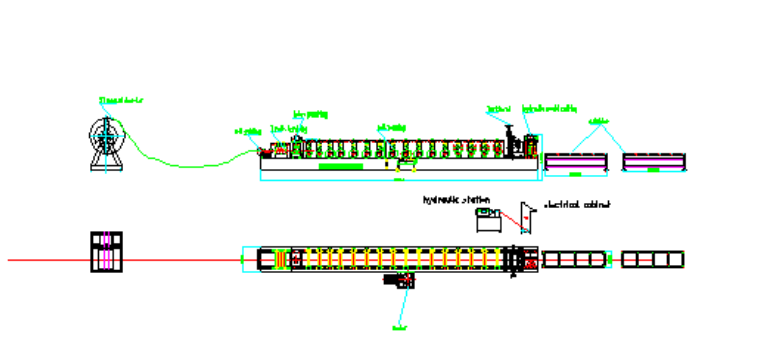

    Production process

    3T manual decoiler---Feeding and guiding--- --Roll Forming--hydraulic Cutting--Outables

    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    Product Paramenters

    Main power:15KW motor made in China Driving system: double 1 inch chain drive Roll stations: 18 stations, Machine structure: welded panel structure Material of roller: GCr15 HRC58-62 Diameter of shaft:¢70mm Max Line speed of roll forming machine: 20m/min
    1. 3T Manual Decoiler,1 set
    2. Roll forming machine,1 set
    3. Cutting blade, 1 set
    4. Hydraulic station,1 set
    5. PLC control cabinet,1 set
    6. Out table (4m),1 set
    7. Spare incluing: 2 switches, a set of tool box
    Recommend Products
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    Our Advantages
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch
    Certifications
    7.5kw Seamless Gutter Machine Fascia Roll Forming Machine 6 Inch

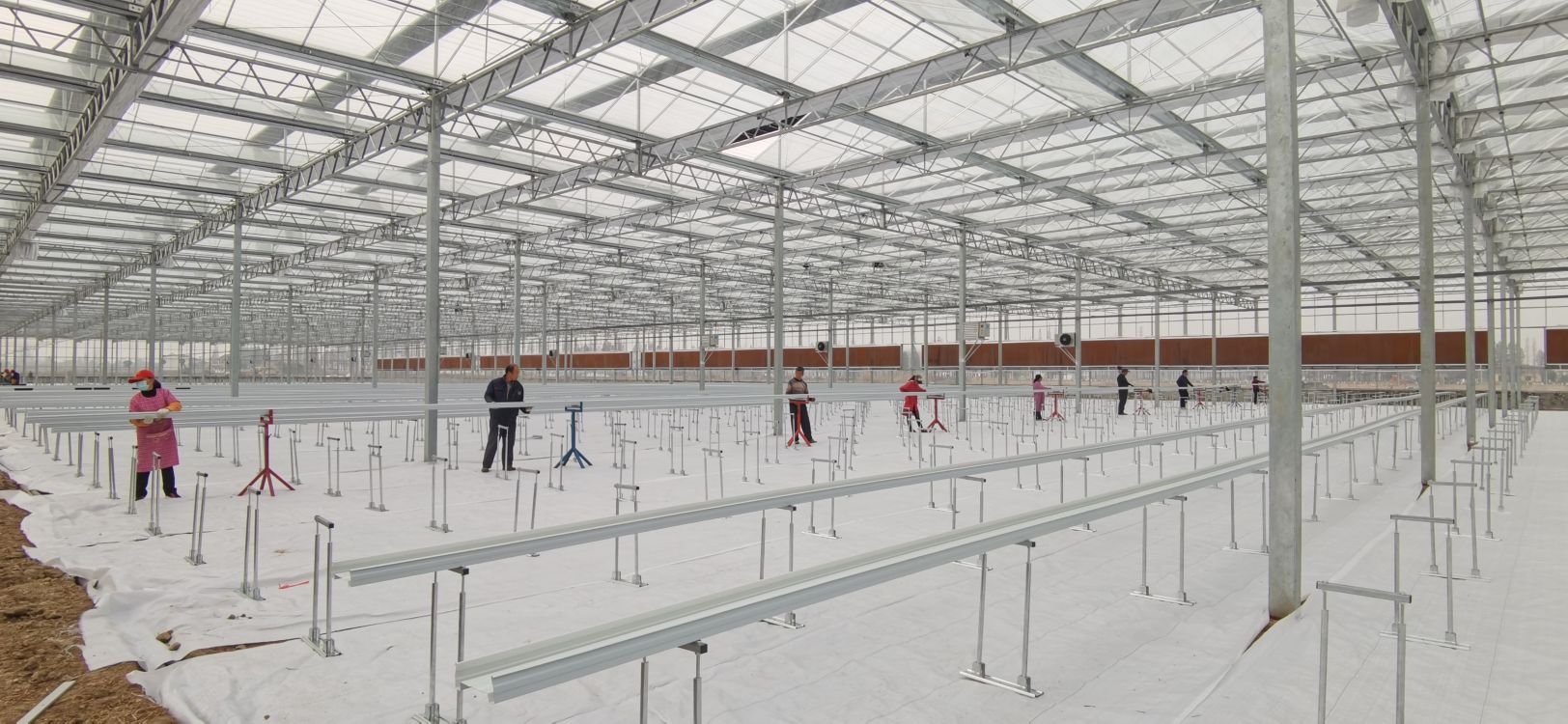

    Customer Photos
