Square Carbon Steel Pipe Making Machine High Frequency

Ask Lasest Price
Brand Name :	HRF
Price :	$100,000.00/sets 1-1 sets

Add to Cart

Product Details
Company Profile

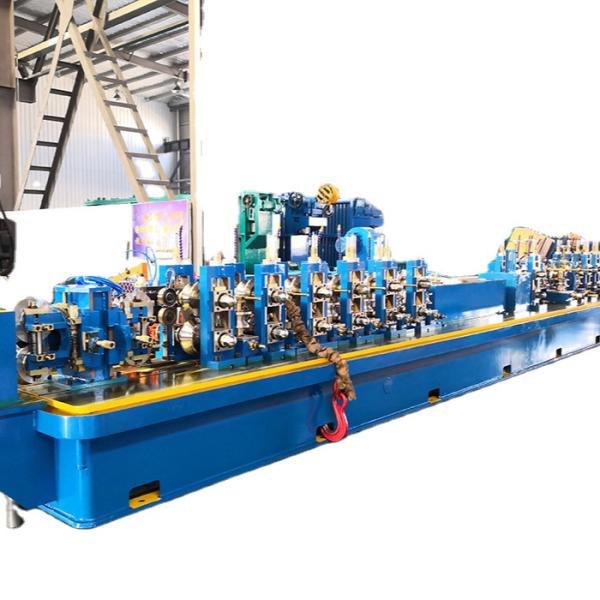

Square Carbon Steel Pipe Making Machine High Frequency

Power supply	380V；50HZ
Power of machine	HF welding machine	300 KW
		main motor	264 KW
		Auxiliary machine	70 KW
		total:	Approach: 634 KW
Area of machine	55M(L)×4.5M(W)
Volume of HF room	6M(L)×3M×2.8M

Sequence	Item	numerical value
1	Round pipe diameter	Φ38mm～Φ127mm
2	Round pipe thickness	δ1.0mm～3.0mm
3	Square pipe size	30×30-100×100mm
4	Square pipe thickness	δ1.0-3.0mm
5	Rectangular pipe size	20×40-80×120mm
6	Rectangular pipe thickness	δ1.0-3.0mm
7	Rolling speed	20M/min～80M/min (different diameter and thickness choose different speed)
8	Length of pipe	4M～10M

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.

4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
