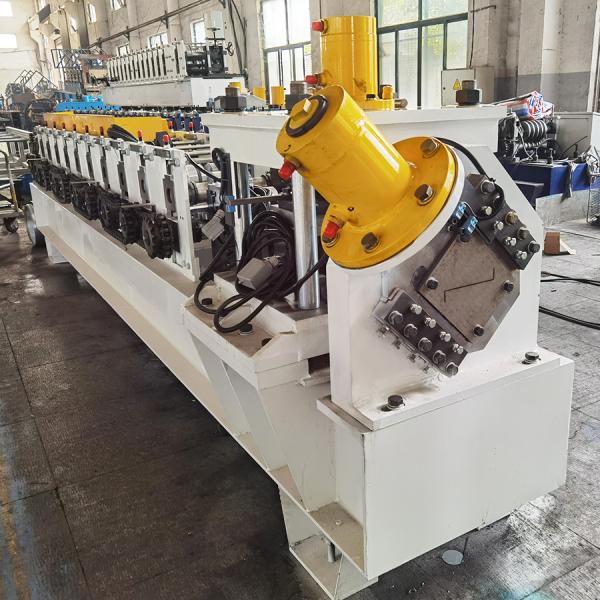

    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw

    Ask Lasest Price
    Brand Name : HRF
    Price : $25,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw

    Company Profile
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Product Description
    The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width,
    Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile
    drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The main
    products are 840 color steel pressing tile forming machine, 860 color steel pressing tile forming machine, 900 color steel
    pressing tile forming machine, 1155 color steel pressing tile forming machine, 840/900 double-layer color steel pressing tile
    forming machine, 860/910 Double-layer color steel tile forming machine, double-layer tile forming machine, water-stopping machine,
    wall panel forming machine, roofing machine forming machine, angle-pressing tile forming machine, C-shaped steel forming machine,
    Z-shaped steel forming machine, glazed tile forming Machine, floor board forming tile machine, adjusting guardrail forming
    machine, automatic hydraulic automatic unwinding machine, leveling machine, etc.
    Details Images
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Profile drawing
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Production process

    12T Coil car loading--12T hydraulic decoiler --manual pre-shear---feeding----Roll Forming-hydraulic flying--13m stacker
    Light Steel Framing C&Z Purlin Forming Machine Roll Former 15kw
    Product Paramenters
    NO
    ITEM
    PARAMETER
    REMARK











    1.








    Suitable material





    Type

    Galvanized Coil,cold rolled steel coil,S350

    Tensile stress( Mpa)

    Yield strength: 330MPa,
    Tensile strength 480Mpa





















    2.
















    Fisnished C/Z purlin demension




    1) C/Z purlin width:100- 300mm variable controlled by PLC automatically
    2) C/Z purlin flange height:30-120mm vairable and controlled by PLC automatically 3)Lip size: 10-20mm variable
    5) Thickness: 1.5-3.0mm
    3.
    Roll Forming stands
    18
    Cast iron stands
    4.
    Main forming machine motor power(kw)
    22kw
    Chinese brand motor
    5.
    2 pinch rolls stations &7 rolls Leveling motor
    4kw
    Chinese brand motor
    6.
    Hydraulic station power(kw) for main
    forming machine
    7.5kw
    Chinese brand motor


    7
    Motor power for 5T hydraulic
    decoiler

    5.5kw

    Chinese brand motor

    8.
    Motor on the hydraulic station ( 5T hydraulic decoiler)

    3kw
    For mandrel close and expansion

    9.
    Motors for the height adjustment
    1.5kw( 2-
    0.75kw)

    Chinese brand motor

    10
    Motor for purlin width adjustment

    1.5kw

    Chinese brand motor
    11.
    Total power(kw)
    About 45kw

    12.

    Power supply requirement
    380V,50Hz,3Ph Or according to your requirement.

    13.

    Machine dimension(LxWxH,m)
    About 10mx1mx1.2m
    14.
    Machine color
    Blue with yellow color combination
