    Upright Rack Shelf Panel Rolling Forming Machine 22kw

    Ask Lasest Price
    Brand Name : HRF
    Price : $40,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Upright Rack Shelf Panel Rolling Forming Machine 22kw

    Company Profile
    Upright Rack Shelf Panel Rolling Forming Machine 22kw
    Upright Rack Shelf Panel Rolling Forming Machine 22kw
    Products Description
    Profile drawing
    Upright Rack Shelf Panel Rolling Forming Machine 22kw
    Upright Rack Shelf Panel Rolling Forming Machine 22kw
    Production process
    Upright Rack Shelf Panel Rolling Forming Machine 22kw

    Product Paramenters
    NO.
    Name
    QTY
    Remark
    1
    5T hydraulic decoiler
    1 set
    Max 5T
    Max coil:800mm
    Hydraulic expansion and motorizied decoiling
    2
    Holes Punching & corner cut
    4 sets
    We use hydraulic punching machine
    Corner cut mould:2 sets ( left and right side can be adjustable manually)
    Lateral holes punching mould: 1 set( position can be adjustable manually)
    3
    Logo stamping
    1 set
    Stamping mould:1 set
    4
    Roll forming Machine
    1 set
    wall panel catilever structure
    24 forming stations
    15KW motor made in China
    5
    Hydraulic Cutting&bending mould combination
    1 set
    Cutting power:7.5kw
    Mould material:Cr12.HRC58-62
    6
    Run-out table
    2pcs
    Steel frame with Rollers
    7
    Electric control panel
    1 set
    PLC control system ,Siemens from German brand
    Yaskawa inverter from Japan
    8
    Hydraulic system
    1 set
    Solenoid is made in China
    Details Images
    Upright Rack Shelf Panel Rolling Forming Machine 22kw

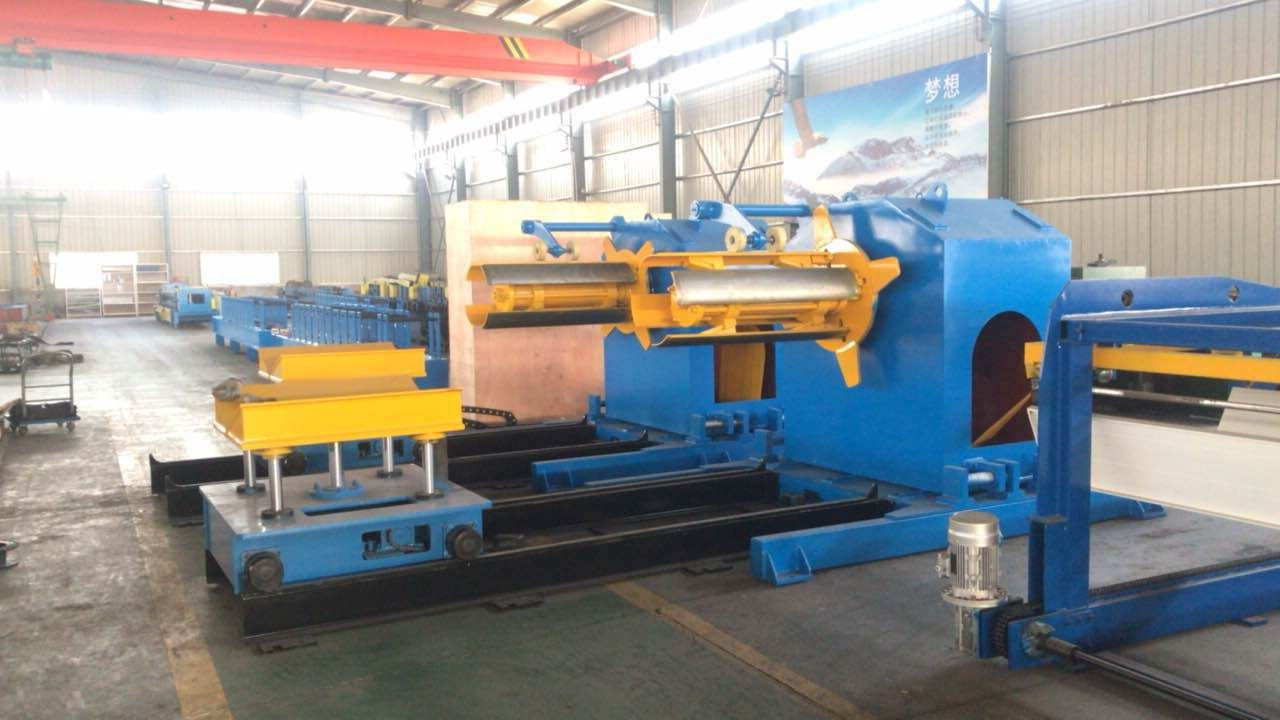

    5 T hydraulic decoiler

    Upright Rack Shelf Panel Rolling Forming Machine 22kw

    Lateral holes punching and corner cut

    Upright Rack Shelf Panel Rolling Forming Machine 22kw

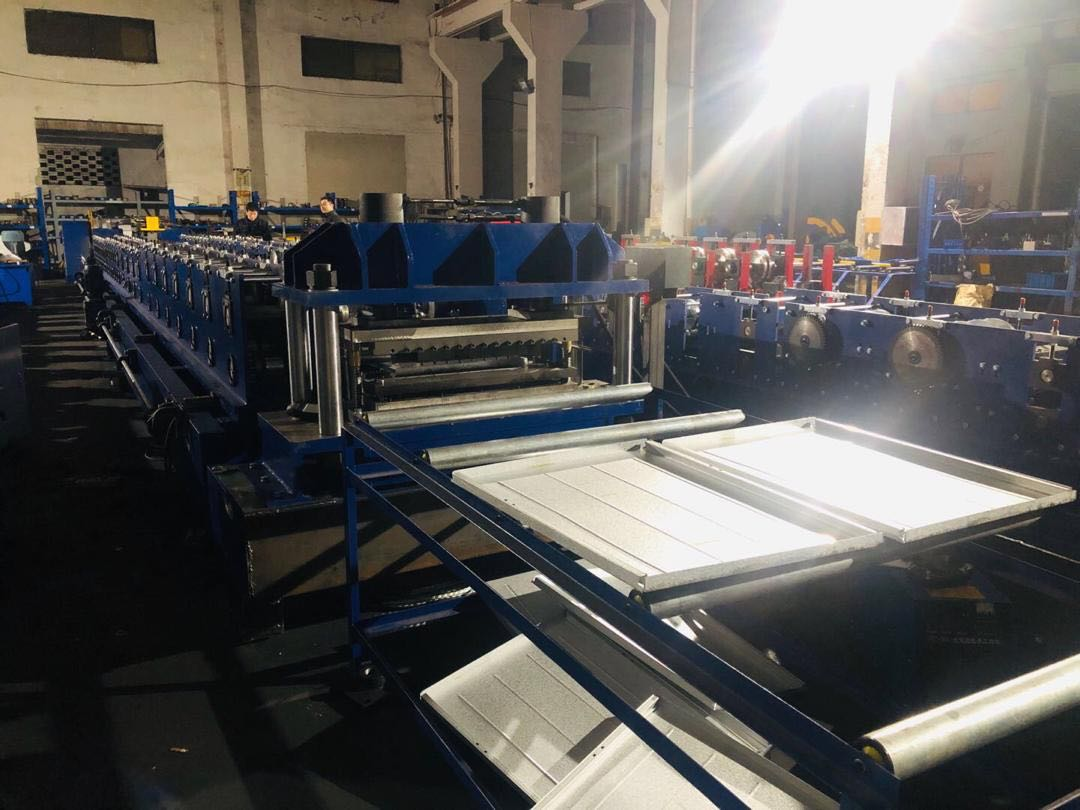

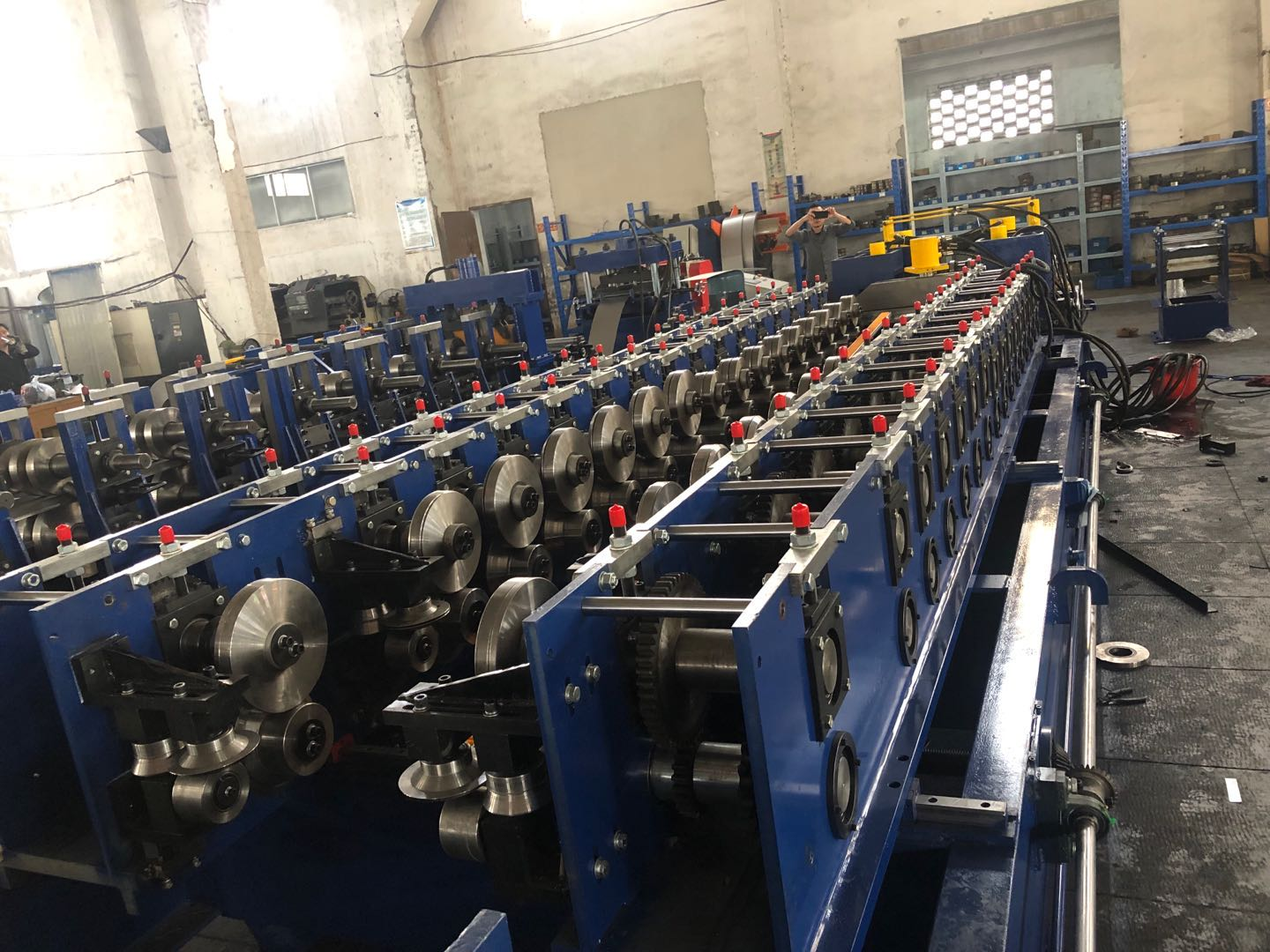

    Main Roll forming machine

    Upright Rack Shelf Panel Rolling Forming Machine 22kw
    Main Roll forming machine
    Upright Rack Shelf Panel Rolling Forming Machine 22kw

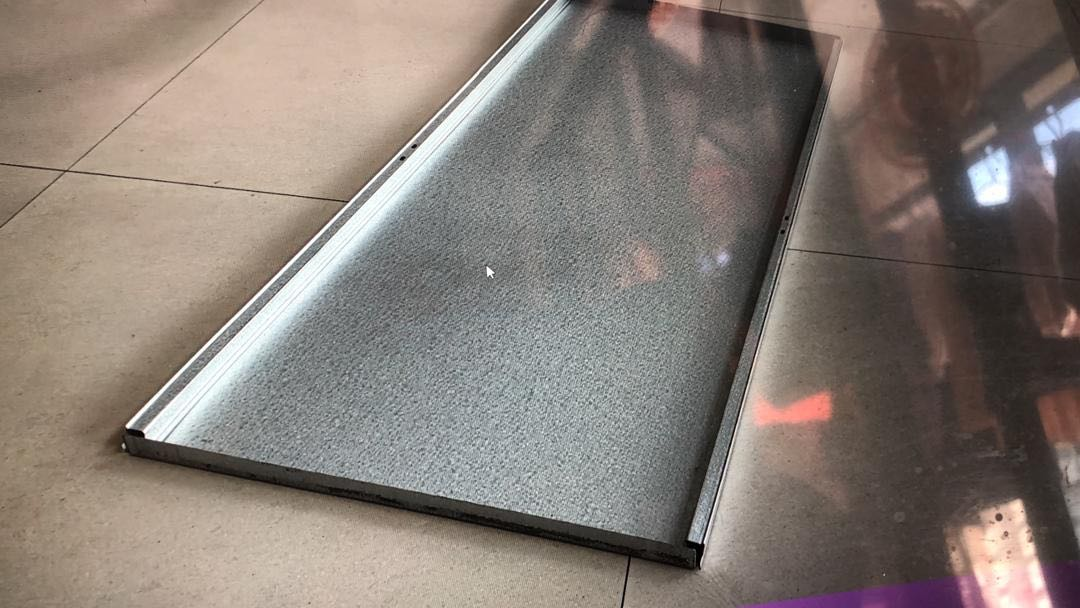

    Sample picture
    Upright Rack Shelf Panel Rolling Forming Machine 22kw

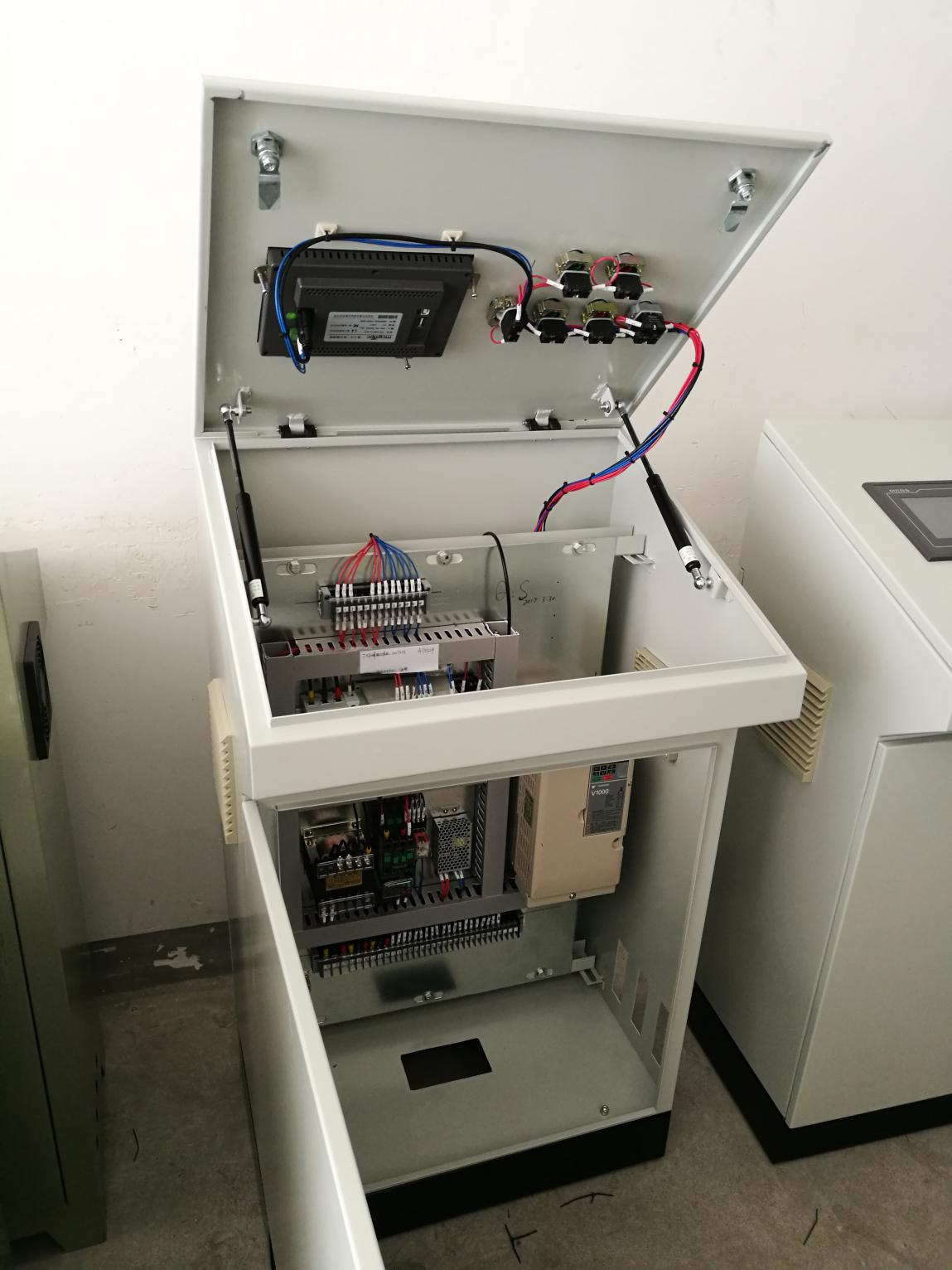

    Electrical control cabinet
    Upright Rack Shelf Panel Rolling Forming Machine 22kw

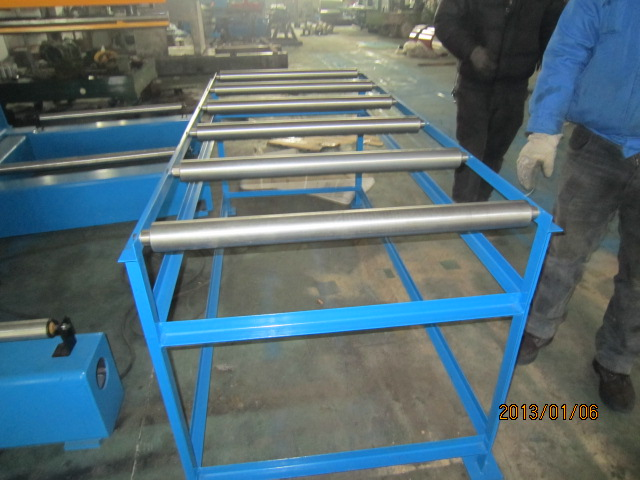

    Outables
    Upright Rack Shelf Panel Rolling Forming Machine 22kw
    Hydraulic station picture
