    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

    Ask Lasest Price
    Brand Name : HRF
    Price : $50,000.00/pieces 1-1 pieces
    • Product Details
    • Company Profile

    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

    Company Profile
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

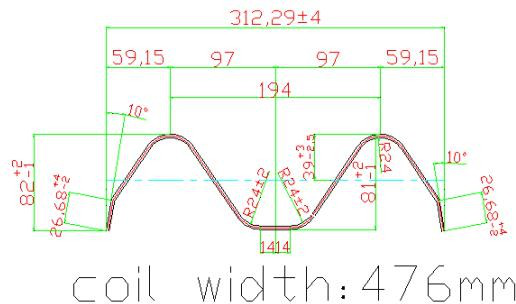

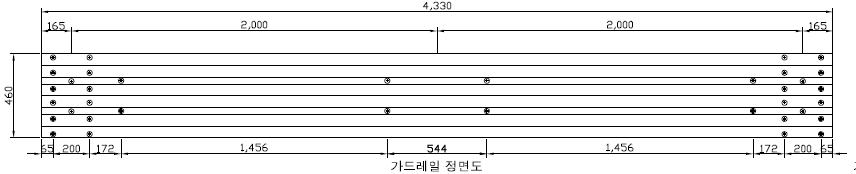

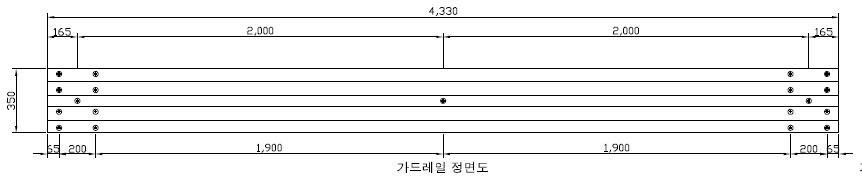

    Profile drawing
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Production process

    10T Coil car→10T hydraulic De-coiler→shovel head,feeding,guiding→9 rolls leveling→servo feeder→holes punching No1,2.3 →hydraulic pre-cut →motorized transmissioning table→roll forming→5m auto-stacker
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Product Paramenters

    Finished products: 2 waves and 3 waves guardrail forming machine with 2.5-4mm with holes punching
    Raw material request:
    Q235Mpa hot rolled steel ,black steel or galvanized steel
    Material thickness:
    2.5mm-4mm
    Whole line working speed:
    max15m/min( 3 pcs x4320mm per min
    Total power:
    about 100kw
    Input direction:
    left to right direction Finished Product information:
    Product width:
    350mm/460mm
    Product height:
    69mm
    Product length:
    4330mm
    Product tolerance:
    4320mm±1.5mm
    Space requirement:
    Length 45mxWidth 5m xHeight 3m
    Details Images
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

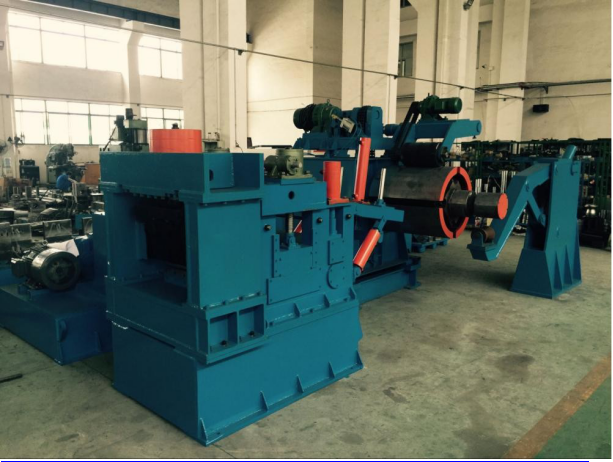

    Hydraulic decoiler,coil car and sheet shovel head and leveler machine picture

    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

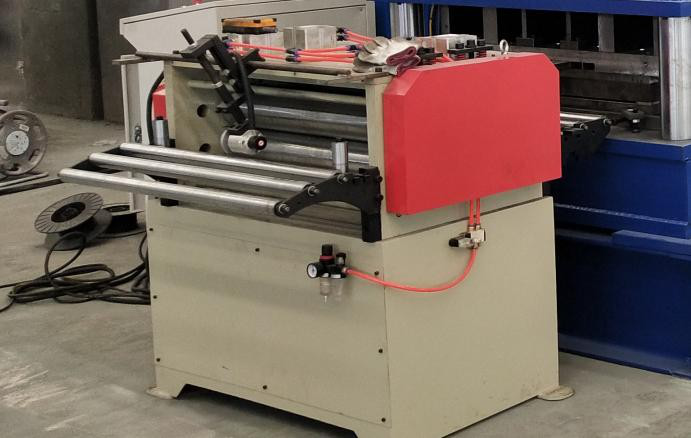

    Servo-feeder system

    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

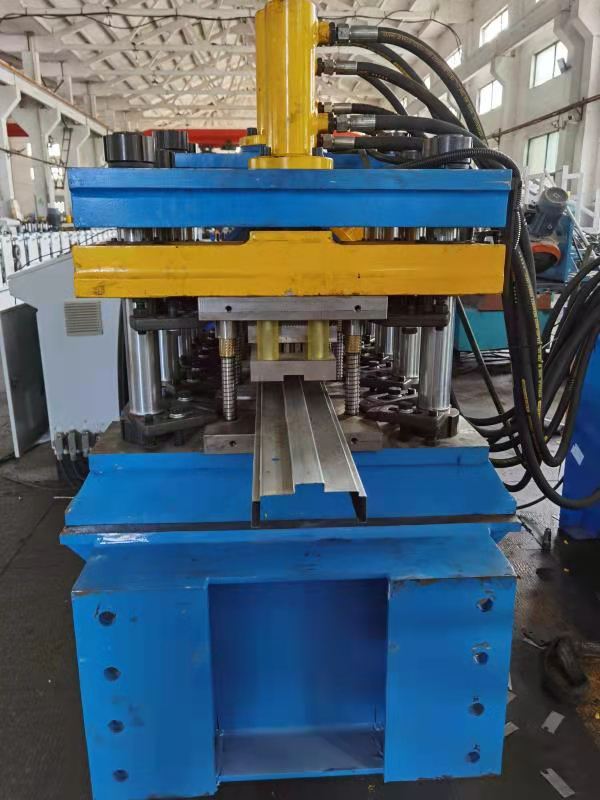

    Four Column-type hydraulic punching units and punching moulds
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

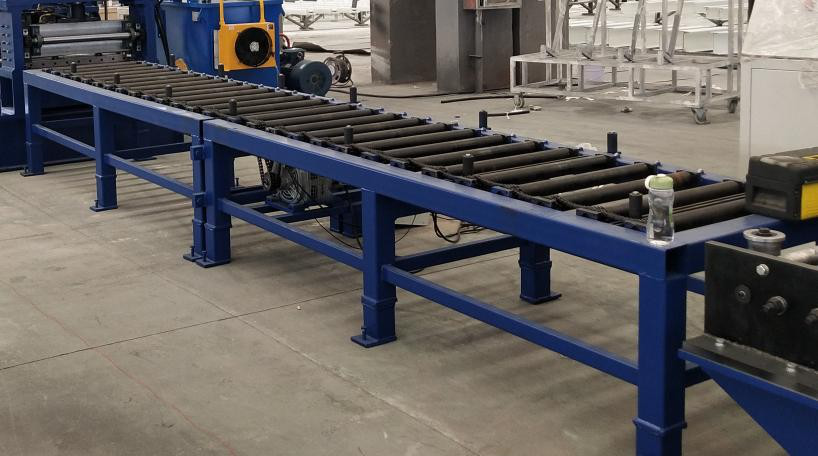

    5m motorized transmissioning table
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    The user just just needs to take off the the last 3 stands to form 2 wave guardrails or add the last 3 stands to form 3 waves guardrails
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Forged iron stands and gearbox drive
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    5m Mauto-stacker
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems

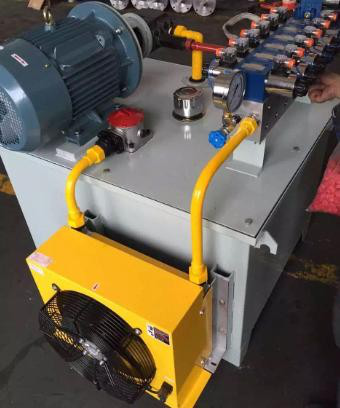

    Hydraulic control system
    Metal Highway Guardrail Roll Forming Machine Hydraulic systems
    Electrical control system
